C Female Connector Clamp/Solder Attachment 4 Hole
Flange For RG59, RG62, .718 inch Hole Spacing

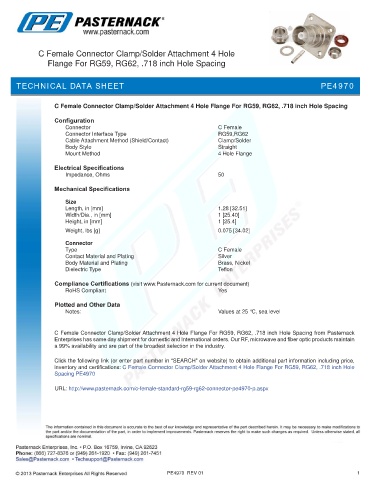

TECHNICAL DATA SHEET PE4970

C Female Connector Clamp/Solder Attachment 4 Hole Flange For RG59, RG62, .718 inch Hole Spacing

Configuration
Connector C Female
Connector Interface Type RG59,RG62
Cable Attachment Method (Shield/Contact) Clamp/Solder
Body Style Straight
Mount Method 4 Hole Flange

Electrical Specifications
Impedance, Ohms 50

Mechanical Specifications

Size
Length, in [mm] 1.28 [32.51]
Width/Dia., in [mm] 1 [25.40]
Height, in [mm] 1 [25.4]
.
Weight, lbs [g] 0.075 [34.02]
Connector
Type C Female
Contact Material and Plating Silver
Body Material and Plating Brass, Nickel
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

C Female Connector Clamp/Solder Attachment 4 Hole Flange For RG59, RG62, .718 inch Hole Spacing from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain
a 99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: C Female Connector Clamp/Solder Attachment 4 Hole Flange For RG59, RG62, .718 inch Hole
Spacing PE4970

URL: http://www.pasternack.com/c-female-standard-rg59-rg62-connector-pe4970-p.aspx

PE4970 REV 01 1
