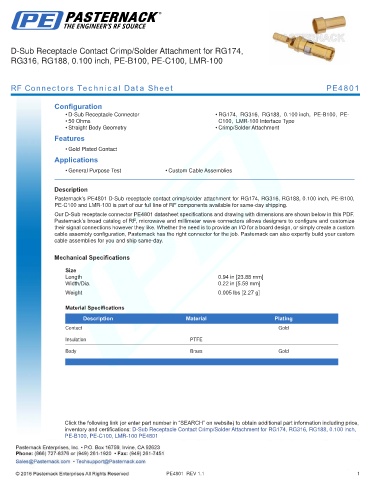

D-Sub Receptacle Contact Crimp/Solder Attachment for RG174,
RG316, RG188, 0.100 inch, PE-B100, PE-C100, LMR-100

RF Connectors Technical Data Sheet PE4801

Configuration
• D-Sub Receptacle Connector • RG174, RG316, RG188, 0.100 inch, PE-B100, PE-
• 50 Ohms C100, LMR-100 Interface Type
• Straight Body Geometry • Crimp/Solder Attachment
Features
• Gold Plated Contact
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4801 D-Sub receptacle contact crimp/solder attachment for RG174, RG316, RG188, 0.100 inch, PE-B100,
PE-C100 and LMR-100 is part of our full line of RF components available for same-day shipping.
Our D-Sub receptacle connector PE4801 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 0.94 in [23.88 mm]
Width/Dia. 0.22 in [5.59 mm]
.
Weight 0.005 lbs [2.27 g]
.
Material Specifications
Description Material Plating
Contact Gold
Insulation PTFE

Body Brass Gold
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: D-Sub Receptacle Contact Crimp/Solder Attachment for RG174, RG316, RG188, 0.100 inch,
PE-B100, PE-C100, LMR-100 PE4801

PE4801 REV 1.1 1
