D-Sub Receptacle Contact Solder Attachment For RG180, RG195

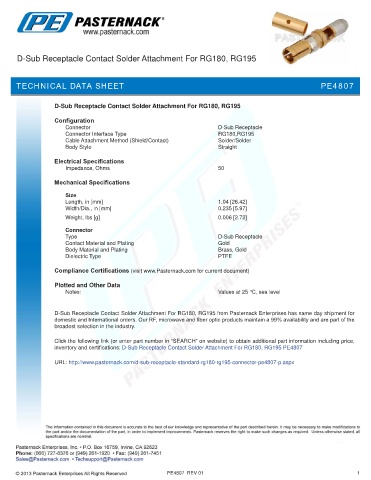

TECHNICAL DATA SHEET PE4807

D-Sub Receptacle Contact Solder Attachment For RG180, RG195

Configuration
Connector D-Sub Receptacle
Connector Interface Type RG180,RG195
Cable Attachment Method (Shield/Contact) Solder/Solder
Body Style Straight
Electrical Specifications
Impedance, Ohms 50

Mechanical Specifications

Size
Length, in [mm] 1.04 [26.42]
Width/Dia., in [mm] 0.235 [5.97]
.
Weight, lbs [g] 0.006 [2.72]

Connector
Type D-Sub Receptacle
Contact Material and Plating Gold
Body Material and Plating Brass, Gold
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)

Plotted and Other Data
Notes: Values at 25 °C, sea level

D-Sub Receptacle Contact Solder Attachment For RG180, RG195 from Pasternack Enterprises has same day shipment for
domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the
broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: D-Sub Receptacle Contact Solder Attachment For RG180, RG195 PE4807

URL: http://www.pasternack.com/d-sub-receptacle-standard-rg180-rg195-connector-pe4807-p.aspx

PE4807 REV 01 1
