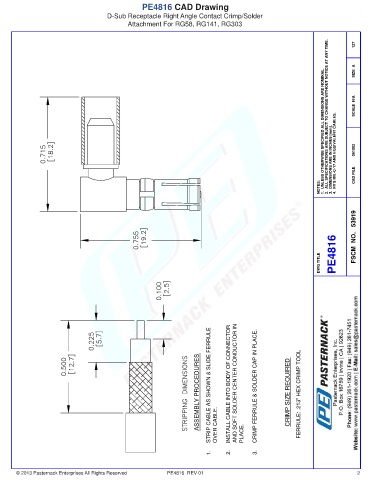

PE4816 CAD Drawing
D-Sub Receptacle Right Angle Contact Crimp/Solder
Attachment For RG58, RG141, RG303

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
127

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 061002

NOTES: CAD FILE

DWG TITLE PE4816 FSCM NO. 53919

ASSEMBLY PROCEDURES STRIP CABLE AS SHOWN & SLIDE FERRULE INSTALL CABLE INTO BODY OF CONNECTOR AND SOFT SOLDER CENTER CONDUCTOR IN CRIMP FERRULE & SOLDER CAP IN PLACE. CRIMP SIZE REQUIRED FERRULE: .213" HEX CRIMP TOOL

1. OVER CABLE. 2. PLACE. 3.

© 2013 Pasternack Enterprises All Rights Reserved PE4816 REV 01 2
