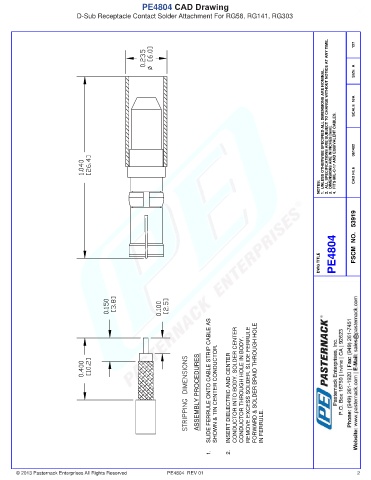

PE4804 CAD Drawing
D-Sub Receptacle Contact Solder Attachment For RG58, RG141, RG303

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
127

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 061402

NOTES: CAD FILE

DWG TITLE PE4804 FSCM NO. 53919

ASSEMBLY PROCEDURES SLIDE FERRULE ONTO CABLE STRIP CABLE AS SHOWN & TIN CENTER CONDUCTOR. INSERT DIELECTRIC AND CENTER CONDUCTOR INTO BODY. SOLDER CENTER CONDUCTOR THROUGH HOLE IN BODY. REMOVE EXCESS SOLDER. SLIDE FERRULE FORWARD & SOLDER BRAID THROUGH HOLE

1. 2. IN FERRULE.

© 2013 Pasternack Enterprises All Rights Reserved PE4804 REV 01 2
