D-Sub Receptacle Contact Solder Attachment
For RG58, RG141, RG303

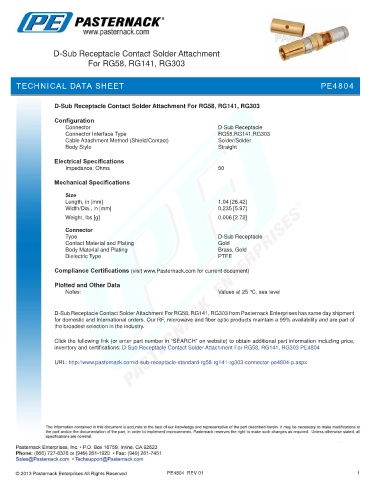

TECHNICAL DATA SHEET PE4804

D-Sub Receptacle Contact Solder Attachment For RG58, RG141, RG303

Configuration
Connector D-Sub Receptacle
Connector Interface Type RG58,RG141,RG303
Cable Attachment Method (Shield/Contact) Solder/Solder
Body Style Straight
Electrical Specifications
Impedance, Ohms 50

Mechanical Specifications

Size
Length, in [mm] 1.04 [26.42]
Width/Dia., in [mm] 0.235 [5.97]
.
Weight, lbs [g] 0.006 [2.72]

Connector
Type D-Sub Receptacle
Contact Material and Plating Gold
Body Material and Plating Brass, Gold
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)

Plotted and Other Data
Notes: Values at 25 °C, sea level

D-Sub Receptacle Contact Solder Attachment For RG58, RG141, RG303 from Pasternack Enterprises has same day shipment
for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of
the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: D-Sub Receptacle Contact Solder Attachment For RG58, RG141, RG303 PE4804

URL: http://www.pasternack.com/d-sub-receptacle-standard-rg58-rg141-rg303-connector-pe4804-p.aspx

PE4804 REV 01 1
