MCX Jack Connector Solder Attachment Thru Hole
PCB, .200 inch x .067 inch Hole Spacing

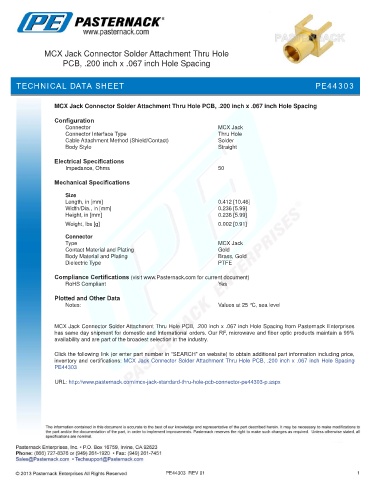

TECHNICAL DATA SHEET PE44303

MCX Jack Connector Solder Attachment Thru Hole PCB, .200 inch x .067 inch Hole Spacing

Configuration
Connector MCX Jack
Connector Interface Type Thru Hole
Cable Attachment Method (Shield/Contact) Solder
Body Style Straight
Electrical Specifications
Impedance, Ohms 50

Mechanical Specifications

Size
Length, in [mm] 0.412 [10.46]
Width/Dia., in [mm] 0.236 [5.99]
Height, in [mm] 0.236 [5.99]
.
Weight, lbs [g] 0.002 [0.91]
Connector
Type MCX Jack
Contact Material and Plating Gold
Body Material and Plating Brass, Gold
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

MCX Jack Connector Solder Attachment Thru Hole PCB, .200 inch x .067 inch Hole Spacing from Pasternack Enterprises
has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99%
availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MCX Jack Connector Solder Attachment Thru Hole PCB, .200 inch x .067 inch Hole Spacing
PE44303

URL: http://www.pasternack.com/mcx-jack-standard-thru-hole-pcb-connector-pe44303-p.aspx

PE44303 REV 01 1
