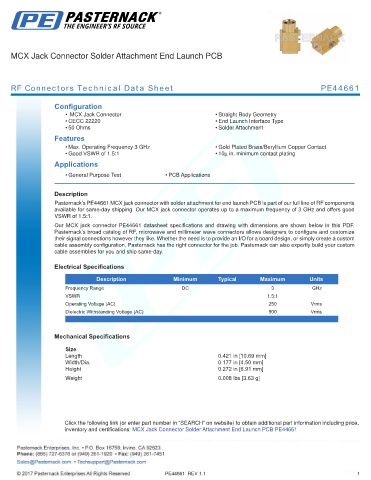

MCX Jack Connector Solder Attachment End Launch PCB

RF Connectors Technical Data Sheet PE44661

Configuration
• MCX Jack Connector • Straight Body Geometry
• CECC 22220 • End Launch Interface Type
• 50 Ohms • Solder Attachment
Features
• Max. Operating Frequency 3 GHz • Gold Plated Brass/Beryllium Copper Contact
• Good VSWR of 1.5:1 • 10µ in. minimum contact plating
Applications
• General Purpose Test • PCB Applications
.
Description
Pasternack’s PE44661 MCX jack connector with solder attachment for end launch PCB is part of our full line of RF components
available for same-day shipping. Our MCX jack connector operates up to a maximum frequency of 3 GHz and offers good
VSWR of 1.5:1.
Our MCX jack connector PE44661 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.5:1
Operating Voltage (AC) 250 Vrms
Dielectric Withstanding Voltage (AC) 500 Vrms
.

Mechanical Specifications

Size
Length 0.421 in [10.69 mm]
Width/Dia. 0.177 in [4.50 mm]
Height 0.272 in [6.91 mm]
.
Weight 0.008 lbs [3.63 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MCX Jack Connector Solder Attachment End Launch PCB PE44661

PE44661 REV 1.1 1
