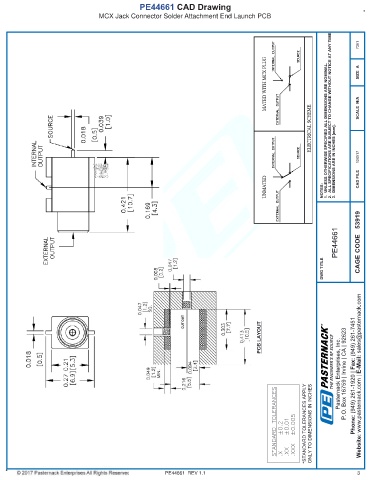

PE44661 CAD Drawing
MCX Jack Connector Solder Attachment End Launch PCB

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
7361

1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SIZE A

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 120517

NOTES: CAD FILE

PE44661 CAGE CODE 53919

DWG TITLE

PCB LAYOUT R

THE ENGINEER'S RF SOURCE Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com

STANDARD TOLERANCES .X ±0.2 .XX ±0.01 .XXX ±0.005 *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES

PE44661 REV 1.1 3
