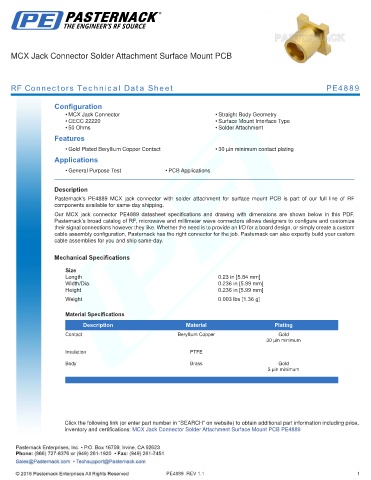

MCX Jack Connector Solder Attachment Surface Mount PCB

RF Connectors Technical Data Sheet PE4889

Configuration
• MCX Jack Connector • Straight Body Geometry
• CECC 22220 • Surface Mount Interface Type
• 50 Ohms • Solder Attachment
Features
• Gold Plated Beryllium Copper Contact • 30 µin minimum contact plating
Applications
• General Purpose Test • PCB Applications
.
Description
Pasternack’s PE4889 MCX jack connector with solder attachment for surface mount PCB is part of our full line of RF
components available for same-day shipping.
Our MCX jack connector PE4889 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 0.23 in [5.84 mm]
Width/Dia. 0.236 in [5.99 mm]
Height 0.236 in [5.99 mm]
.
Weight 0.003 lbs [1.36 g]
.
Material Specifications
Description Material Plating
Contact Beryllium Copper Gold
30 µin minimum
Insulation PTFE
Body Brass Gold
3 µin minimum
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MCX Jack Connector Solder Attachment Surface Mount PCB PE4889

PE4889 REV 1.1 1
