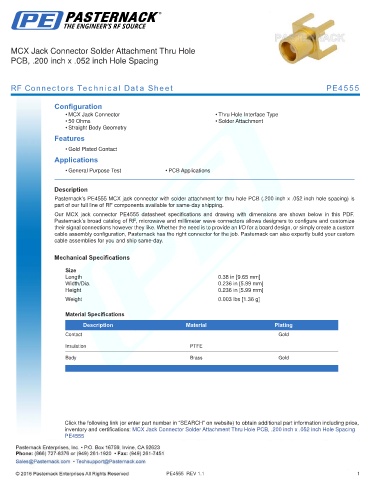

MCX Jack Connector Solder Attachment Thru Hole
PCB, .200 inch x .052 inch Hole Spacing

RF Connectors Technical Data Sheet PE4555

Configuration
• MCX Jack Connector • Thru Hole Interface Type
• 50 Ohms • Solder Attachment
• Straight Body Geometry
Features
• Gold Plated Contact
Applications
• General Purpose Test • PCB Applications
.
Description
Pasternack’s PE4555 MCX jack connector with solder attachment for thru hole PCB (.200 inch x .052 inch hole spacing) is
part of our full line of RF components available for same-day shipping.
Our MCX jack connector PE4555 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 0.38 in [9.65 mm]
Width/Dia. 0.236 in [5.99 mm]
Height 0.236 in [5.99 mm]
.
Weight 0.003 lbs [1.36 g]
.
Material Specifications
Description Material Plating
Contact Gold

Insulation PTFE
Body Brass Gold
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MCX Jack Connector Solder Attachment Thru Hole PCB, .200 inch x .052 inch Hole Spacing
PE4555
