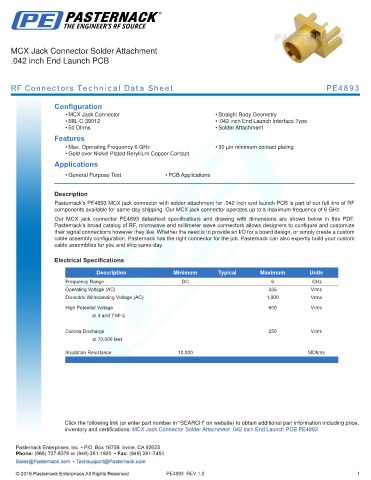

MCX Jack Connector Solder Attachment
.042 inch End Launch PCB

RF Connectors Technical Data Sheet PE4893

Configuration
• MCX Jack Connector • Straight Body Geometry
• MIL-C-39012 • .042 inch End Launch Interface Type
• 50 Ohms • Solder Attachment
Features
• Max. Operating Frequency 6 GHz • 30 µin minimum contact plating
• Gold over Nickel Plated Beryllium Copper Contact
Applications
• General Purpose Test • PCB Applications
.
Description
Pasternack’s PE4893 MCX jack connector with solder attachment for .042 inch end launch PCB is part of our full line of RF
components available for same-day shipping. Our MCX jack connector operates up to a maximum frequency of 6 GHz.
Our MCX jack connector PE4893 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
Operating Voltage (AC) 335 Vrms
Dielectric Withstanding Voltage (AC) 1,000 Vrms
High Potential Voltage 600 Vrms
at 4 and 7 MHz

Corona Discharge 250 Vrms
at 70,000 feet

Insulation Resistance 10,000 MOhms
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MCX Jack Connector Solder Attachment .042 inch End Launch PCB PE4893

PE4893 REV 1.2 1
