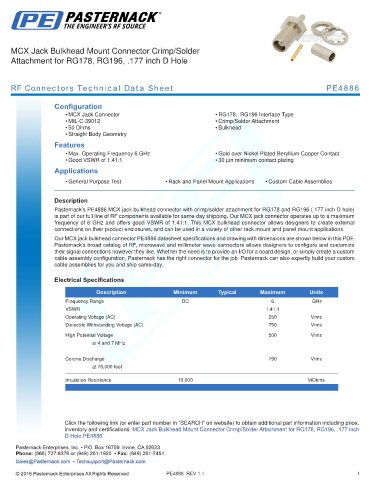

MCX Jack Bulkhead Mount Connector Crimp/Solder
Attachment for RG178, RG196, .177 inch D Hole

RF Connectors Technical Data Sheet PE4886

Configuration
• MCX Jack Connector • RG178, RG196 Interface Type
• MIL-C-39012 • Crimp/Solder Attachment
• 50 Ohms • Bulkhead
• Straight Body Geometry
Features
• Max. Operating Frequency 6 GHz • Gold over Nickel Plated Beryllium Copper Contact
• Good VSWR of 1.41:1 • 30 µin minimum contact plating
Applications

• General Purpose Test • Rack and Panel Mount Applications • Custom Cable Assemblies
.
Description
Pasternack’s PE4886 MCX jack bulkhead connector with crimp/solder attachment for RG178 and RG196 (.177 inch D hole)
is part of our full line of RF components available for same-day shipping. Our MCX jack connector operates up to a maximum
frequency of 6 GHz and offers good VSWR of 1.41:1. This MCX bulkhead connector allows designers to create external
connections on their product enclosures, and can be used in a variety of other rack mount and panel mount applications.
Our MCX jack bulkhead connector PE4886 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
VSWR 1.41:1
Operating Voltage (AC) 250 Vrms
Dielectric Withstanding Voltage (AC) 750 Vrms
High Potential Voltage 500 Vrms
at 4 and 7 MHz

Corona Discharge 190 Vrms
at 70,000 feet

Insulation Resistance 10,000 MOhms
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MCX Jack Bulkhead Mount Connector Crimp/Solder Attachment for RG178, RG196, .177 inch
D Hole PE4886
