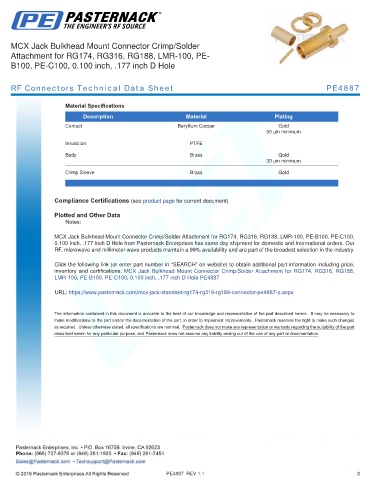

MCX Jack Bulkhead Mount Connector Crimp/Solder
Attachment for RG174, RG316, RG188, LMR-100, PE-
B100, PE-C100, 0.100 inch, .177 inch D Hole
RF Connectors Technical Data Sheet PE4887
Material Specifications
Description Material Plating
Contact Beryllium Copper Gold
50 µin minimum
Insulation PTFE
Body Brass Gold
30 µin minimum
Crimp Sleeve Brass Gold
.
Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
MCX Jack Bulkhead Mount Connector Crimp/Solder Attachment for RG174, RG316, RG188, LMR-100, PE-B100, PE-C100,
0.100 inch, .177 inch D Hole from Pasternack Enterprises has same day shipment for domestic and International orders. Our
RF, microwave and millimeter wave products maintain a 99% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MCX Jack Bulkhead Mount Connector Crimp/Solder Attachment for RG174, RG316, RG188,
LMR-100, PE-B100, PE-C100, 0.100 inch, .177 inch D Hole PE4887
URL: https://www.pasternack.com/mcx-jack-standard-rg174-rg316-rg188-connector-pe4887-p.aspx
PE4887 REV 1.1 2
