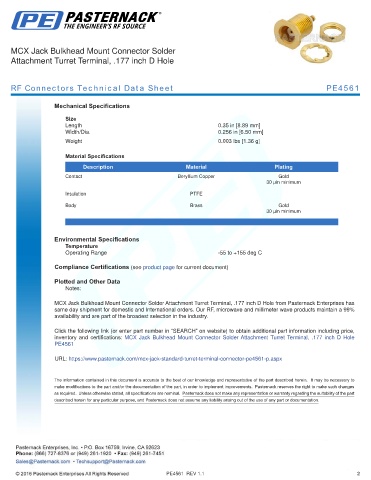

MCX Jack Bulkhead Mount Connector Solder
Attachment Turret Terminal, .177 inch D Hole

RF Connectors Technical Data Sheet PE4561

Mechanical Specifications

Size
Length 0.35 in [8.89 mm]
Width/Dia. 0.256 in [6.50 mm]
.
Weight 0.003 lbs [1.36 g]
.
Material Specifications
Description Material Plating
Contact Beryllium Copper Gold
30 µin minimum
Insulation PTFE

Body Brass Gold
30 µin minimum
.

Environmental Specifications
Temperature
Operating Range -55 to +155 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

MCX Jack Bulkhead Mount Connector Solder Attachment Turret Terminal, .177 inch D Hole from Pasternack Enterprises has
same day shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99%
availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MCX Jack Bulkhead Mount Connector Solder Attachment Turret Terminal, .177 inch D Hole
PE4561
