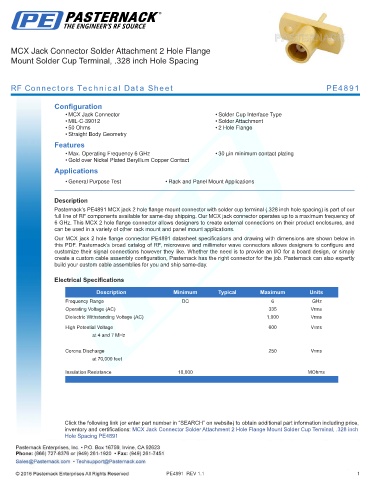

MCX Jack Connector Solder Attachment 2 Hole Flange
Mount Solder Cup Terminal, .328 inch Hole Spacing

RF Connectors Technical Data Sheet PE4891

Configuration
• MCX Jack Connector • Solder Cup Interface Type
• MIL-C-39012 • Solder Attachment
• 50 Ohms • 2 Hole Flange
• Straight Body Geometry
Features
• Max. Operating Frequency 6 GHz • 30 µin minimum contact plating
• Gold over Nickel Plated Beryllium Copper Contact
Applications

• General Purpose Test • Rack and Panel Mount Applications
.
Description
Pasternack’s PE4891 MCX jack 2 hole flange mount connector with solder cup terminal (.328 inch hole spacing) is part of our
full line of RF components available for same-day shipping. Our MCX jack connector operates up to a maximum frequency of
6 GHz. This MCX 2 hole flange connector allows designers to create external connections on their product enclosures, and
can be used in a variety of other rack mount and panel mount applications.
Our MCX jack 2 hole flange connector PE4891 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
Operating Voltage (AC) 335 Vrms
Dielectric Withstanding Voltage (AC) 1,000 Vrms
High Potential Voltage 600 Vrms
at 4 and 7 MHz

Corona Discharge 250 Vrms
at 70,000 feet

Insulation Resistance 10,000 MOhms
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MCX Jack Connector Solder Attachment 2 Hole Flange Mount Solder Cup Terminal, .328 inch
Hole Spacing PE4891

PE4891 REV 1.1 1
