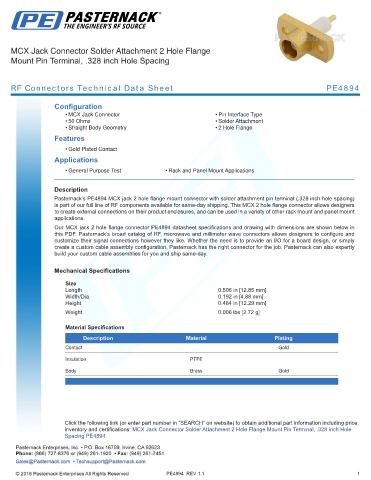

MCX Jack Connector Solder Attachment 2 Hole Flange
Mount Pin Terminal, .328 inch Hole Spacing

RF Connectors Technical Data Sheet PE4894

Configuration
• MCX Jack Connector • Pin Interface Type
• 50 Ohms • Solder Attachment
• Straight Body Geometry • 2 Hole Flange
Features
• Gold Plated Contact
Applications
• General Purpose Test • Rack and Panel Mount Applications
.
Description
Pasternack’s PE4894 MCX jack 2 hole flange mount connector with solder attachment pin terminal (.328 inch hole spacing)
is part of our full line of RF components available for same-day shipping. This MCX 2 hole flange connector allows designers
to create external connections on their product enclosures, and can be used in a variety of other rack mount and panel mount
applications.
Our MCX jack 2 hole flange connector PE4894 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 0.506 in [12.85 mm]
Width/Dia. 0.192 in [4.88 mm]
Height 0.484 in [12.29 mm]
.
Weight 0.006 lbs [2.72 g]
.
Material Specifications
Description Material Plating
Contact Gold
Insulation PTFE

Body Brass Gold
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MCX Jack Connector Solder Attachment 2 Hole Flange Mount Pin Terminal, .328 inch Hole
Spacing PE4894

PE4894 REV 1.1 1
