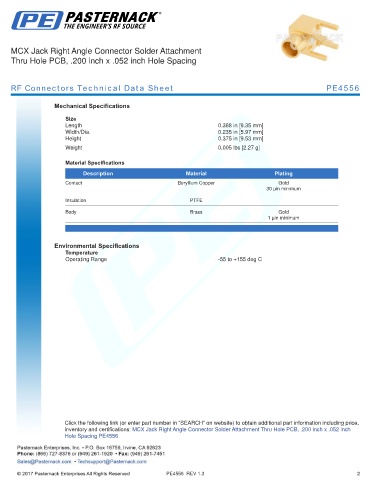

MCX Jack Right Angle Connector Solder Attachment
Thru Hole PCB, .200 inch x .052 inch Hole Spacing

RF Connectors Technical Data Sheet PE4556

Mechanical Specifications

Size
Length 0.368 in [9.35 mm]
Width/Dia. 0.235 in [5.97 mm]
Height 0.375 in [9.53 mm]
.
Weight 0.005 lbs [2.27 g]
.
Material Specifications
Description Material Plating
Contact Beryllium Copper Gold
30 µin minimum

Insulation PTFE
Body Brass Gold
1 µin minimum
.

Environmental Specifications
Temperature
Operating Range -55 to +155 deg C

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MCX Jack Right Angle Connector Solder Attachment Thru Hole PCB, .200 inch x .052 inch
Hole Spacing PE4556
