MCX Jack Right Angle Connector Solder
Attachment Surface Mount PCB

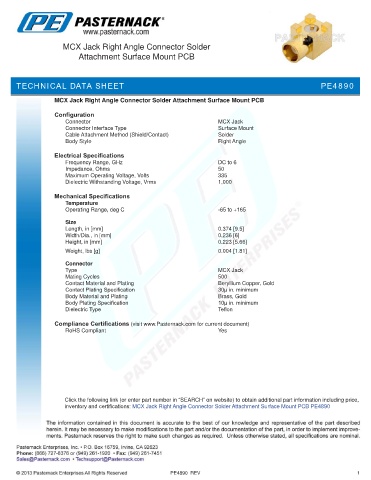

TECHNICAL DATA SHEET PE4890

MCX Jack Right Angle Connector Solder Attachment Surface Mount PCB

Configuration
Connector MCX Jack
Connector Interface Type Surface Mount
Cable Attachment Method (Shield/Contact) Solder
Body Style Right Angle

Electrical Specifications
Frequency Range, GHz DC to 6
Impedance, Ohms 50
Maximum Operating Voltage, Volts 335
Dielectric Withstanding Voltage, Vrms 1,000

Mechanical Specifications
Temperature
Operating Range, deg C -65 to +165

Size
Length, in [mm] 0.374 [9.5]
Width/Dia., in [mm] 0.236 [6]
Height, in [mm] 0.223 [5.66]
.
Weight, lbs [g] 0.004 [1.81]

Connector
Type MCX Jack
Mating Cycles 500
Contact Material and Plating Beryllium Copper, Gold
Contact Plating Specification 30µ in. minimum
Body Material and Plating Brass, Gold
Body Plating Specification 10µ in. minimum
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MCX Jack Right Angle Connector Solder Attachment Surface Mount PCB PE4890

PE4890 REV 1
