MCX Jack Right Angle Bulkhead Connector Solder
Attachment Turret Terminal, .177 inch D Hole

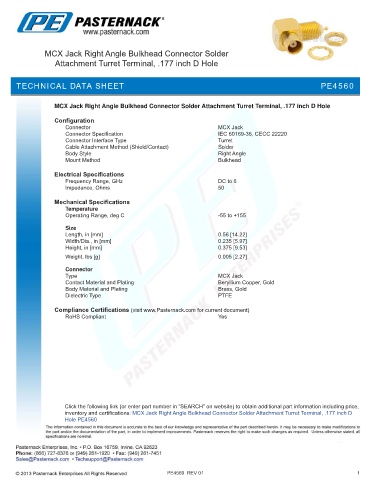

TECHNICAL DATA SHEET PE4560

MCX Jack Right Angle Bulkhead Connector Solder Attachment Turret Terminal, .177 inch D Hole

Configuration
Connector MCX Jack
Connector Specification IEC 60169-36, CECC 22220
Connector Interface Type Turret
Cable Attachment Method (Shield/Contact) Solder
Body Style Right Angle
Mount Method Bulkhead

Electrical Specifications
Frequency Range, GHz DC to 6
Impedance, Ohms 50

Mechanical Specifications
Temperature
Operating Range, deg C -55 to +155
Size
Length, in [mm] 0.56 [14.22]
Width/Dia., in [mm] 0.235 [5.97]
Height, in [mm] 0.375 [9.53]
.
Weight, lbs [g] 0.005 [2.27]
Connector
Type MCX Jack
Contact Material and Plating Beryllium Copper, Gold
Body Material and Plating Brass, Gold
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MCX Jack Right Angle Bulkhead Connector Solder Attachment Turret Terminal, .177 inch D
Hole PE4560

PE4560 REV 01 1
