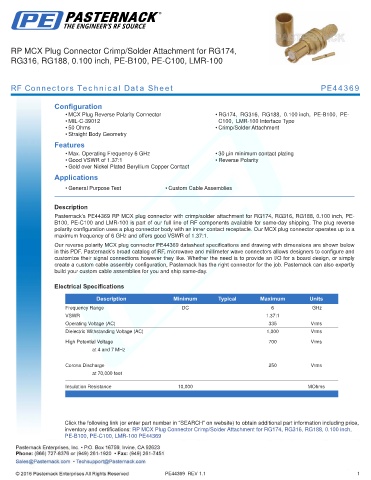

RP MCX Plug Connector Crimp/Solder Attachment for RG174,
RG316, RG188, 0.100 inch, PE-B100, PE-C100, LMR-100

RF Connectors Technical Data Sheet PE44369

Configuration
• MCX Plug Reverse Polarity Connector • RG174, RG316, RG188, 0.100 inch, PE-B100, PE-
• MIL-C-39012 C100, LMR-100 Interface Type
• 50 Ohms • Crimp/Solder Attachment
• Straight Body Geometry
Features
• Max. Operating Frequency 6 GHz • 30 µin minimum contact plating
• Good VSWR of 1.37:1 • Reverse Polarity
• Gold over Nickel Plated Beryllium Copper Contact
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE44369 RP MCX plug connector with crimp/solder attachment for RG174, RG316, RG188, 0.100 inch, PE-
B100, PE-C100 and LMR-100 is part of our full line of RF components available for same-day shipping. The plug reverse
polarity configuration uses a plug connector body with an inner contact receptacle. Our MCX plug connector operates up to a
maximum frequency of 6 GHz and offers good VSWR of 1.37:1.
Our reverse polarity MCX plug connector PE44369 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
VSWR 1.37:1
Operating Voltage (AC) 335 Vrms
Dielectric Withstanding Voltage (AC) 1,000 Vrms
High Potential Voltage 700 Vrms
at 4 and 7 MHz

Corona Discharge 250 Vrms
at 70,000 feet

Insulation Resistance 10,000 MOhms
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP MCX Plug Connector Crimp/Solder Attachment for RG174, RG316, RG188, 0.100 inch,
PE-B100, PE-C100, LMR-100 PE44369
