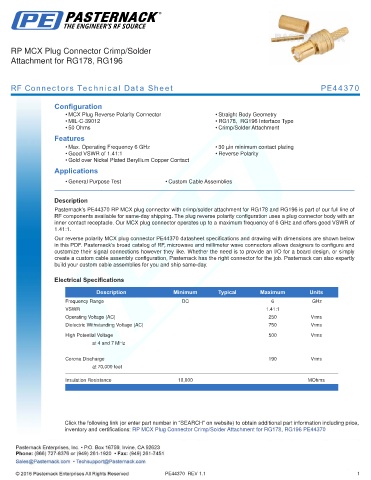

RP MCX Plug Connector Crimp/Solder
Attachment for RG178, RG196

RF Connectors Technical Data Sheet PE44370

Configuration
• MCX Plug Reverse Polarity Connector • Straight Body Geometry
• MIL-C-39012 • RG178, RG196 Interface Type
• 50 Ohms • Crimp/Solder Attachment
Features
• Max. Operating Frequency 6 GHz • 30 µin minimum contact plating
• Good VSWR of 1.41:1 • Reverse Polarity
• Gold over Nickel Plated Beryllium Copper Contact
Applications

• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE44370 RP MCX plug connector with crimp/solder attachment for RG178 and RG196 is part of our full line of
RF components available for same-day shipping. The plug reverse polarity configuration uses a plug connector body with an
inner contact receptacle. Our MCX plug connector operates up to a maximum frequency of 6 GHz and offers good VSWR of
1.41:1.
Our reverse polarity MCX plug connector PE44370 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
VSWR 1.41:1
Operating Voltage (AC) 250 Vrms
Dielectric Withstanding Voltage (AC) 750 Vrms
High Potential Voltage 500 Vrms
at 4 and 7 MHz

Corona Discharge 190 Vrms
at 70,000 feet

Insulation Resistance 10,000 MOhms
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP MCX Plug Connector Crimp/Solder Attachment for RG178, RG196 PE44370
