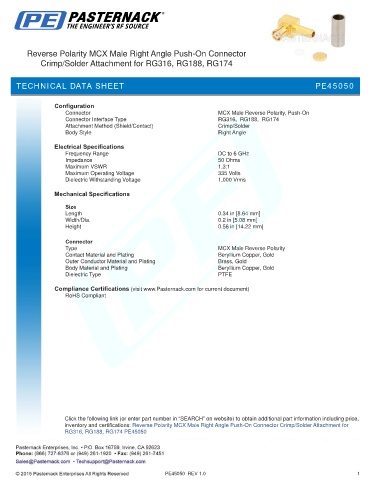

Reverse Polarity MCX Male Right Angle Push-On Connector
Crimp/Solder Attachment for RG316, RG188, RG174

TECHNICAL DATA SHEET PE45050

Configuration
Connector MCX Male Reverse Polarity, Push-On
Connector Interface Type RG316, RG188, RG174
Attachment Method (Shield/Contact) Crimp/Solder
Body Style Right Angle

Electrical Specifications
Frequency Range DC to 6 GHz
Impedance 50 Ohms
Maximum VSWR 1.3:1
Maximum Operating Voltage 335 Volts
Dielectric Withstanding Voltage 1,000 Vrms

Mechanical Specifications

Size
Length 0.34 in [8.64 mm]
Width/Dia. 0.2 in [5.08 mm]
Height 0.56 in [14.22 mm]
.
Connector
Type MCX Male Reverse Polarity
Contact Material and Plating Beryllium Copper, Gold
Outer Conductor Material and Plating Brass, Gold
Body Material and Plating Beryllium Copper, Gold
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Reverse Polarity MCX Male Right Angle Push-On Connector Crimp/Solder Attachment for
RG316, RG188, RG174 PE45050
