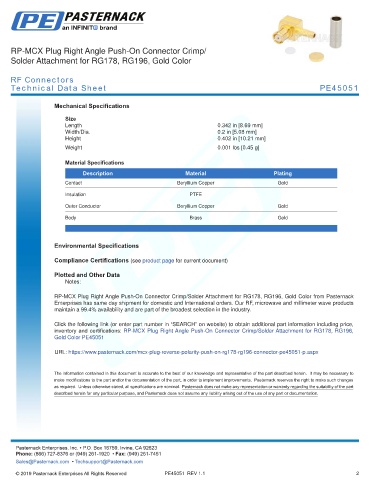

RP-MCX Plug Right Angle Push-On Connector Crimp/
Solder Attachment for RG178, RG196, Gold Color

RF Connectors
Technical Data Sheet PE45051

Mechanical Specifications

Size
Length 0.342 in [8.69 mm]
Width/Dia. 0.2 in [5.08 mm]
Height 0.402 in [10.21 mm]
.
Weight 0.001 lbs [0.45 g]
.
Material Specifications
Description Material Plating
Contact Beryllium Copper Gold
Insulation PTFE

Outer Conductor Beryllium Copper Gold
Body Brass Gold
.

Environmental Specifications

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

RP-MCX Plug Right Angle Push-On Connector Crimp/Solder Attachment for RG178, RG196, Gold Color from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and millimeter wave products
maintain a 99.4% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP-MCX Plug Right Angle Push-On Connector Crimp/Solder Attachment for RG178, RG196,
Gold Color PE45051

URL: https://www.pasternack.com/mcx-plug-reverse-polarity-push-on-rg178-rg196-connector-pe45051-p.aspx

-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
