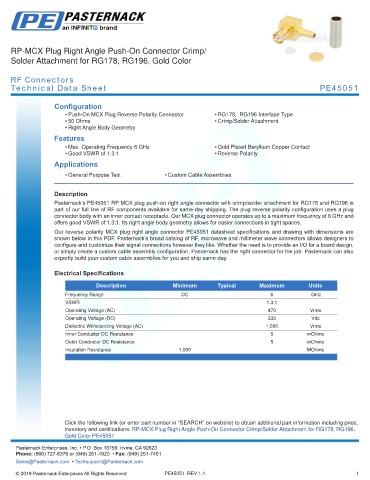

RP-MCX Plug Right Angle Push-On Connector Crimp/
Solder Attachment for RG178, RG196, Gold Color

RF Connectors
Technical Data Sheet PE45051

Configuration
• Push-On MCX Plug Reverse Polarity Connector • RG178, RG196 Interface Type
• 50 Ohms • Crimp/Solder Attachment
• Right Angle Body Geometry
Features
• Max. Operating Frequency 6 GHz • Gold Plated Beryllium Copper Contact
• Good VSWR of 1.3:1 • Reverse Polarity
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE45051 RP MCX plug push-on right angle connector with crimp/solder attachment for RG178 and RG196 is
part of our full line of RF components available for same-day shipping. The plug reverse polarity configuration uses a plug
connector body with an inner contact receptacle. Our MCX plug connector operates up to a maximum frequency of 6 GHz and
offers good VSWR of 1.3:1. Its right angle body geometry allows for easier connections in tight spaces.
Our reverse polarity MCX plug right angle connector PE45051 datasheet specifications and drawing with dimensions are
shown below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to
configure and customize their signal connections however they like. Whether the need is to provide an I/O for a board design,
or simply create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also
expertly build your custom cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
VSWR 1.3:1
Operating Voltage (AC) 470 Vrms
Operating Voltage (DC) 335 Vdc
Dielectric Withstanding Voltage (AC) 1,000 Vrms
Inner Conductor DC Resistance 5 mOhms
Outer Conductor DC Resistance 5 mOhms
Insulation Resistance 1,000 MOhms
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP-MCX Plug Right Angle Push-On Connector Crimp/Solder Attachment for RG178, RG196,
-
Gold Color PE45051 Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE45051 REV 1.1 1
