RP MCX Jack Bulkhead Connector Crimp/Solder Attachment
For RG174, RG316, RG188, .177 inch D Hole

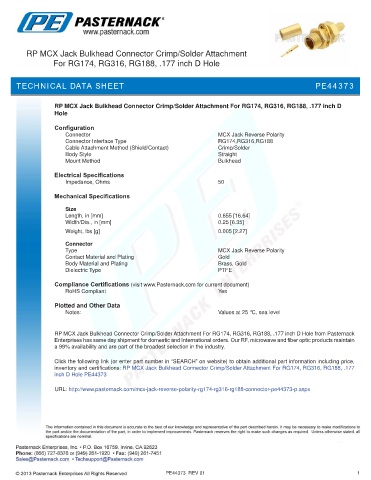

TECHNICAL DATA SHEET PE44373

RP MCX Jack Bulkhead Connector Crimp/Solder Attachment For RG174, RG316, RG188, .177 inch D
Hole

Configuration
Connector MCX Jack Reverse Polarity
Connector Interface Type RG174,RG316,RG188
Cable Attachment Method (Shield/Contact) Crimp/Solder
Body Style Straight
Mount Method Bulkhead

Electrical Specifications
Impedance, Ohms 50

Mechanical Specifications
Size
Length, in [mm] 0.655 [16.64]
Width/Dia., in [mm] 0.25 [6.35]
.
Weight, lbs [g] 0.005 [2.27]

Connector
Type MCX Jack Reverse Polarity
Contact Material and Plating Gold
Body Material and Plating Brass, Gold
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

RP MCX Jack Bulkhead Connector Crimp/Solder Attachment For RG174, RG316, RG188, .177 inch D Hole from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain
a 99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP MCX Jack Bulkhead Connector Crimp/Solder Attachment For RG174, RG316, RG188, .177
inch D Hole PE44373

URL: http://www.pasternack.com/mcx-jack-reverse-polarity-rg174-rg316-rg188-connector-pe44373-p.aspx

PE44373 REV 01 1
