RP MCX Jack Bulkhead Connector Solder
Attachment End Launch PCB, .177 inch D Hole

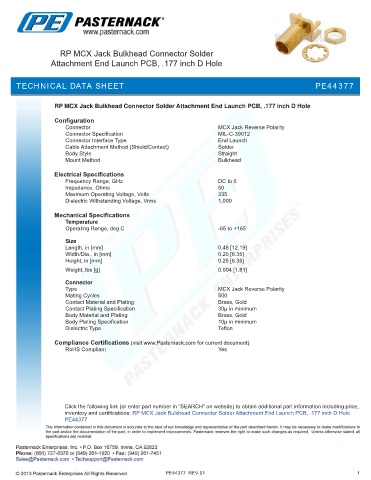

TECHNICAL DATA SHEET PE44377

RP MCX Jack Bulkhead Connector Solder Attachment End Launch PCB, .177 inch D Hole

Configuration
Connector MCX Jack Reverse Polarity
Connector Specification MIL-C-39012
Connector Interface Type End Launch
Cable Attachment Method (Shield/Contact) Solder
Body Style Straight
Mount Method Bulkhead

Electrical Specifications
Frequency Range, GHz DC to 6
Impedance, Ohms 50
Maximum Operating Voltage, Volts 335
Dielectric Withstanding Voltage, Vrms 1,000

Mechanical Specifications
Temperature
Operating Range, deg C -65 to +165

Size
Length, in [mm] 0.48 [12.19]
Width/Dia., in [mm] 0.25 [6.35]
Height, in [mm] 0.25 [6.35]
.
Weight, lbs [g] 0.004 [1.81]

Connector
Type MCX Jack Reverse Polarity
Mating Cycles 500
Contact Material and Plating Brass, Gold
Contact Plating Specification 30µ in minimum
Body Material and Plating Brass, Gold
Body Plating Specification 10µ in minimum
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP MCX Jack Bulkhead Connector Solder Attachment End Launch PCB, .177 inch D Hole
PE44377

PE44377 REV 01 1
