RP MCX Jack Bulkhead Connector Crimp/Solder
Attachment For RG178, RG196, .177 inch D Hole

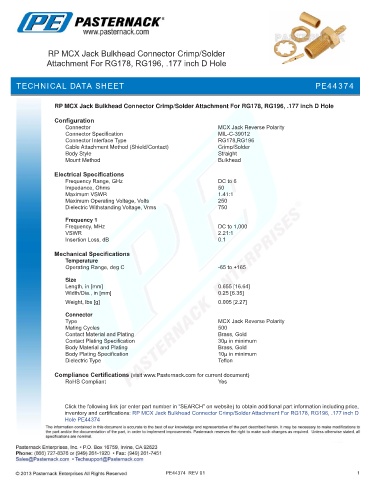

TECHNICAL DATA SHEET PE44374

RP MCX Jack Bulkhead Connector Crimp/Solder Attachment For RG178, RG196, .177 inch D Hole

Configuration
Connector MCX Jack Reverse Polarity
Connector Specification MIL-C-39012
Connector Interface Type RG178,RG196
Cable Attachment Method (Shield/Contact) Crimp/Solder
Body Style Straight
Mount Method Bulkhead

Electrical Specifications
Frequency Range, GHz DC to 6
Impedance, Ohms 50
Maximum VSWR 1.41:1
Maximum Operating Voltage, Volts 250
Dielectric Withstanding Voltage, Vrms 750

Frequency 1
Frequency, MHz DC to 1,000
VSWR 2.21:1
Insertion Loss, dB 0.1

Mechanical Specifications
Temperature
Operating Range, deg C -65 to +165

Size
Length, in [mm] 0.655 [16.64]
Width/Dia., in [mm] 0.25 [6.35]
.
Weight, lbs [g] 0.005 [2.27]
Connector
Type MCX Jack Reverse Polarity
Mating Cycles 500
Contact Material and Plating Brass, Gold
Contact Plating Specification 30µ in minimum
Body Material and Plating Brass, Gold
Body Plating Specification 10µ in minimum
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP MCX Jack Bulkhead Connector Crimp/Solder Attachment For RG178, RG196, .177 inch D
Hole PE44374

PE44374 REV 01 1
