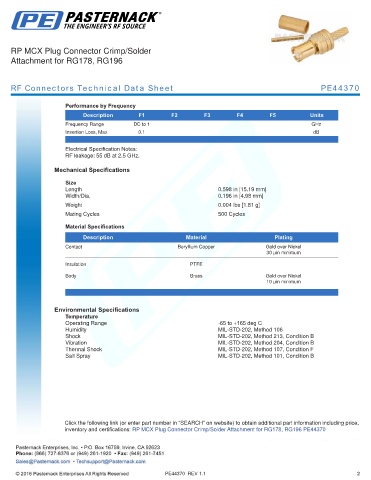

RP MCX Plug Connector Crimp/Solder
Attachment for RG178, RG196

RF Connectors Technical Data Sheet PE44370

Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 1 GHz
Insertion Loss, Max 0.1 dB
.
Electrical Specification Notes:
RF leakage: 55 dB at 2.5 GHz.

Mechanical Specifications

Size
Length 0.598 in [15.19 mm]
Width/Dia. 0.196 in [4.98 mm]
.
Weight 0.004 lbs [1.81 g]
.
Mating Cycles 500 Cycles
Material Specifications
Description Material Plating
Contact Beryllium Copper Gold over Nickel
30 µin minimum

Insulation PTFE
Body Brass Gold over Nickel
10 µin minimum

.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
Humidity MIL-STD-202, Method 106
Shock MIL-STD-202, Method 213, Condition B
Vibration MIL-STD-202, Method 204, Condition B
Thermal Shock MIL-STD-202, Method 107, Condition F
Salt Spray MIL-STD-202, Method 101, Condition B

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP MCX Plug Connector Crimp/Solder Attachment for RG178, RG196 PE44370

PE44370 REV 1.1 2
