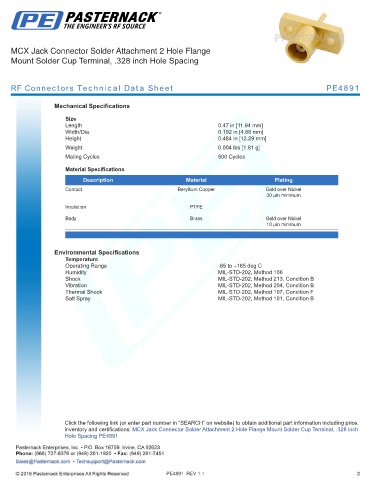

MCX Jack Connector Solder Attachment 2 Hole Flange
Mount Solder Cup Terminal, .328 inch Hole Spacing

RF Connectors Technical Data Sheet PE4891

Mechanical Specifications

Size
Length 0.47 in [11.94 mm]
Width/Dia. 0.192 in [4.88 mm]
Height 0.484 in [12.29 mm]
.
Weight 0.004 lbs [1.81 g]
.
Mating Cycles 500 Cycles
Material Specifications
Description Material Plating
Contact Beryllium Copper Gold over Nickel
30 µin minimum
Insulation PTFE
Body Brass Gold over Nickel
10 µin minimum
.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
Humidity MIL-STD-202, Method 106
Shock MIL-STD-202, Method 213, Condition B
Vibration MIL-STD-202, Method 204, Condition B
Thermal Shock MIL-STD-202, Method 107, Condition F
Salt Spray MIL-STD-202, Method 101, Condition B

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MCX Jack Connector Solder Attachment 2 Hole Flange Mount Solder Cup Terminal, .328 inch
Hole Spacing PE4891

PE4891 REV 1.1 2
