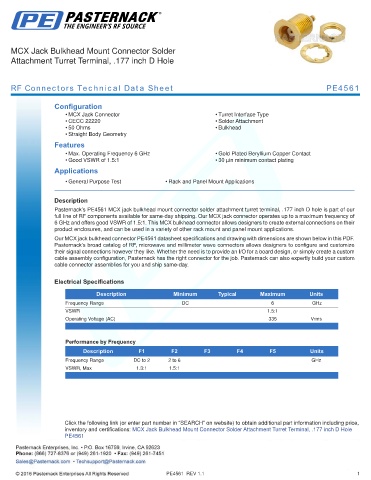

MCX Jack Bulkhead Mount Connector Solder
     Attachment Turret Terminal, .177 inch D Hole




     RF Connectors Technical Data Sheet                                                                      PE4561


                   Configuration
                       • MCX Jack Connector                             • Turret Interface Type
                       • CECC 22220                                     • Solder Attachment
                       • 50 Ohms                                        • Bulkhead
                       • Straight Body Geometry
                   Features
                       • Max. Operating Frequency 6 GHz                 • Gold Plated Beryllium Copper Contact
                       • Good VSWR of 1.5:1                             • 30 µin minimum contact plating
                   Applications

                       • General Purpose Test           • Rack and Panel Mount Applications
                   .
                   Description
                   Pasternack’s PE4561 MCX jack bulkhead mount connector solder attachment turret terminal, .177 inch D hole is part of our
                   full line of RF components available for same-day shipping. Our MCX jack connector operates up to a maximum frequency of
                   6 GHz and offers good VSWR of 1.5:1. This MCX bulkhead connector allows designers to create external connections on their
                   product enclosures, and can be used in a variety of other rack mount and panel mount applications.
                   Our MCX jack bulkhead connector PE4561 datasheet specifications and drawing with dimensions are shown below in this PDF.
                   Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
                   their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
                   cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
                   cable connector assemblies for you and ship same-day.

                   Electrical Specifications

                                 Description              Minimum        Typical       Maximum         Units
                       Frequency Range                       DC                            6             GHz
                       VSWR                                                              1.5:1
                       Operating Voltage (AC)                                             335           Vrms
                       .

                       Performance by Frequency
                            Description        F1         F2        F3         F4         F5           Units
                       Frequency Range       DC to 2     2 to 6                                         GHz
                       VSWR, Max              1.3:1      1.5:1
                       .







                      Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
                      inventory and certifications: MCX Jack Bulkhead Mount Connector Solder Attachment Turret Terminal, .177 inch D Hole
                      PE4561






                                                        PE4561  REV 1.1                                                1
