MCX Jack Connector Solder Attachment
.042 inch End Launch PCB

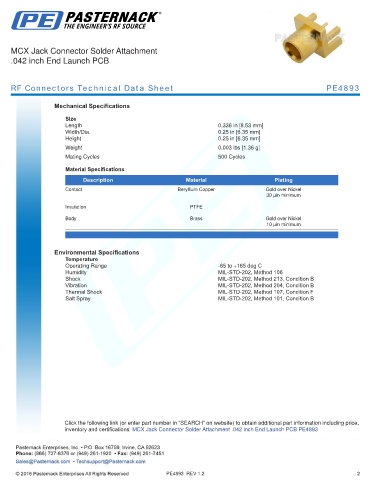

RF Connectors Technical Data Sheet PE4893

Mechanical Specifications

Size
Length 0.336 in [8.53 mm]
Width/Dia. 0.25 in [6.35 mm]
Height 0.25 in [6.35 mm]
.
Weight 0.003 lbs [1.36 g]
.
Mating Cycles 500 Cycles
Material Specifications
Description Material Plating
Contact Beryllium Copper Gold over Nickel
30 µin minimum
Insulation PTFE
Body Brass Gold over Nickel
10 µin minimum
.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
Humidity MIL-STD-202, Method 106
Shock MIL-STD-202, Method 213, Condition B
Vibration MIL-STD-202, Method 204, Condition B
Thermal Shock MIL-STD-202, Method 107, Condition F
Salt Spray MIL-STD-202, Method 101, Condition B

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MCX Jack Connector Solder Attachment .042 inch End Launch PCB PE4893

PE4893 REV 1.2 2
