MCX Jack Connector Solder Attachment
0.062 inch End Launch PCB

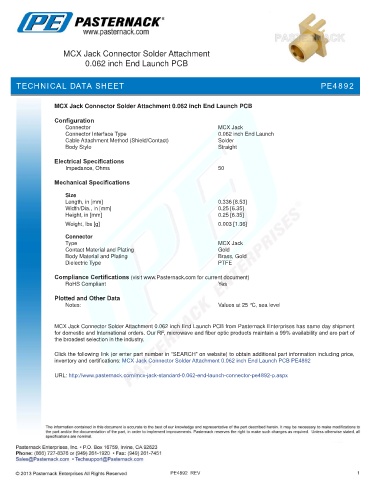

TECHNICAL DATA SHEET PE4892

MCX Jack Connector Solder Attachment 0.062 inch End Launch PCB

Configuration
Connector MCX Jack
Connector Interface Type 0.062 inch End Launch
Cable Attachment Method (Shield/Contact) Solder
Body Style Straight
Electrical Specifications
Impedance, Ohms 50

Mechanical Specifications

Size
Length, in [mm] 0.336 [8.53]
Width/Dia., in [mm] 0.25 [6.35]
Height, in [mm] 0.25 [6.35]
.
Weight, lbs [g] 0.003 [1.36]
Connector
Type MCX Jack
Contact Material and Plating Gold
Body Material and Plating Brass, Gold
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

MCX Jack Connector Solder Attachment 0.062 inch End Launch PCB from Pasternack Enterprises has same day shipment
for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of
the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MCX Jack Connector Solder Attachment 0.062 inch End Launch PCB PE4892

URL: http://www.pasternack.com/mcx-jack-standard-0.062-end-launch-connector-pe4892-p.aspx

PE4892 REV 1
