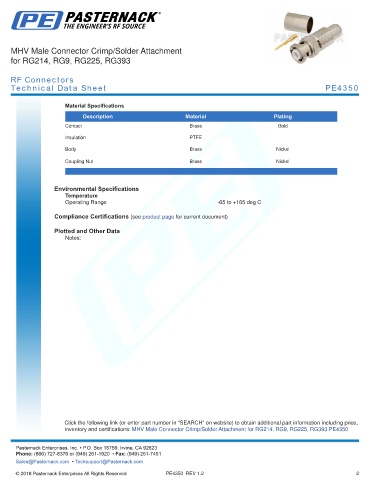

MHV Male Connector Crimp/Solder Attachment
for RG214, RG9, RG225, RG393
RF Connectors
Technical Data Sheet PE4350
Material Specifications
Description Material Plating
Contact Brass Gold
Insulation PTFE
Body Brass Nickel
Coupling Nut Brass Nickel
.
Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MHV Male Connector Crimp/Solder Attachment for RG214, RG9, RG225, RG393 PE4350 -
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
PE4350 REV 1.2 2
