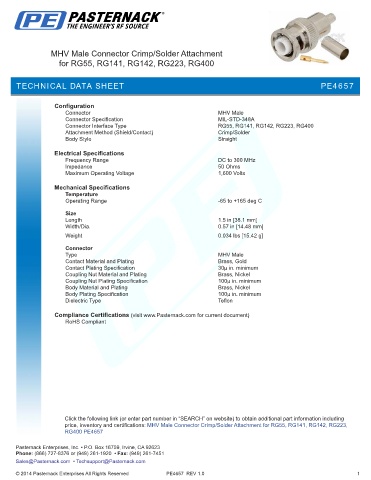

MHV Male Connector Crimp/Solder Attachment
for RG55, RG141, RG142, RG223, RG400

TECHNICAL DATA SHEET PE4657

Configuration
Connector MHV Male
Connector Specification MIL-STD-348A
Connector Interface Type RG55, RG141, RG142, RG223, RG400
Attachment Method (Shield/Contact) Crimp/Solder
Body Style Straight

Electrical Specifications
Frequency Range DC to 300 MHz
Impedance 50 Ohms
Maximum Operating Voltage 1,600 Volts

Mechanical Specifications
Temperature
Operating Range -65 to +165 deg C
Size
Length 1.5 in [38.1 mm]
Width/Dia. 0.57 in [14.48 mm]
.
Weight 0.034 lbs [15.42 g]
Connector
Type MHV Male
Contact Material and Plating Brass, Gold
Contact Plating Specification 30µ in. minimum
Coupling Nut Material and Plating Brass, Nickel
Coupling Nut Plating Specification 100µ in. minimum
Body Material and Plating Brass, Nickel
Body Plating Specification 100µ in. minimum
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: MHV Male Connector Crimp/Solder Attachment for RG55, RG141, RG142, RG223,
RG400 PE4657

PE4657 REV 1.0 1
