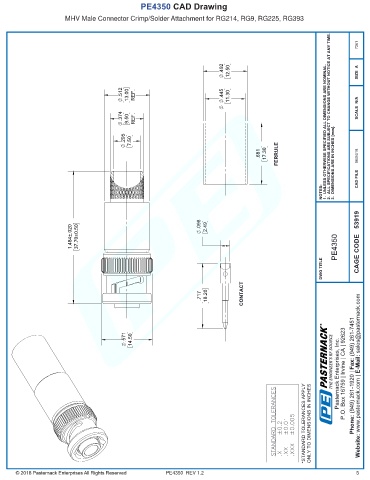

PE4350 CAD Drawing
MHV Male Connector Crimp/Solder Attachment for RG214, RG9, RG225, RG393

7361

.492 12.50 SIZE A

.512 13.00 REF. .445 11.30

.374 9.50 REF. 2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME. SCALE N/A

.295 7.50 1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

.681 17.30 FERRULE 06/04/18

3. DIMENSIONS ARE IN INCHES [mm].

NOTES: CAD FILE

.098 2.49
1.484±.020 37.70±0.50 CAGE CODE 53919

PE4350
DWG TITLE

.717 18.20 CONTACT
