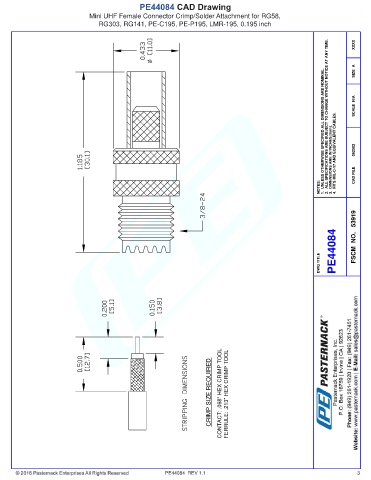

PE44084 CAD Drawing
Mini UHF Female Connector Crimp/Solder Attachment for RG58,
RG303, RG141, PE-C195, PE-P195, LMR-195, 0.195 inch

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
XXXX

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 062502

NOTES: CAD FILE

PE44084 FSCM NO. 53919

DWG TITLE

CRIMP SIZE REQUIRED CONTACT: .068" HEX CRIMP TOOL FERRULE: .213" HEX CRIMP TOOL

PE44084 REV 1.1 3
