Mini UHF Female Connector Crimp/Solder
Attachment For RG174, RG316, RG188

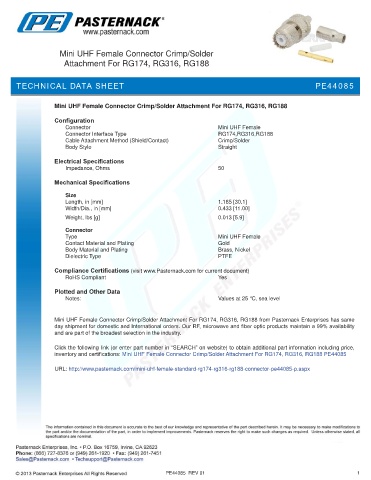

TECHNICAL DATA SHEET PE44085

Mini UHF Female Connector Crimp/Solder Attachment For RG174, RG316, RG188

Configuration
Connector Mini UHF Female
Connector Interface Type RG174,RG316,RG188
Cable Attachment Method (Shield/Contact) Crimp/Solder
Body Style Straight
Electrical Specifications
Impedance, Ohms 50

Mechanical Specifications

Size
Length, in [mm] 1.185 [30.1]
Width/Dia., in [mm] 0.433 [11.00]
.
Weight, lbs [g] 0.013 [5.9]

Connector
Type Mini UHF Female
Contact Material and Plating Gold
Body Material and Plating Brass, Nickel
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

Mini UHF Female Connector Crimp/Solder Attachment For RG174, RG316, RG188 from Pasternack Enterprises has same
day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability
and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Mini UHF Female Connector Crimp/Solder Attachment For RG174, RG316, RG188 PE44085

URL: http://www.pasternack.com/mini-uhf-female-standard-rg174-rg316-rg188-connector-pe44085-p.aspx

PE44085 REV 01 1
