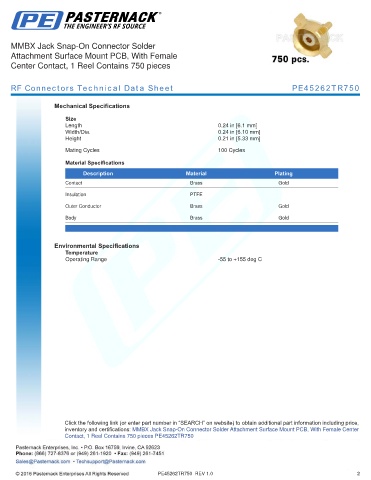

MMBX Jack Snap-On Connector Solder
Attachment Surface Mount PCB, With Female
Center Contact, 1 Reel Contains 750 pieces
RF Connectors Technical Data Sheet PE45262TR750
Mechanical Specifications
Size
Length 0.24 in [6.1 mm]
Width/Dia. 0.24 in [6.10 mm]
Height 0.21 in [5.33 mm]
.
.
Mating Cycles 100 Cycles
Material Specifications
Description Material Plating
Contact Brass Gold
Insulation PTFE
Outer Conductor Brass Gold
Body Brass Gold
.
Environmental Specifications
Temperature
Operating Range -55 to +155 deg C
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MMBX Jack Snap-On Connector Solder Attachment Surface Mount PCB, With Female Center
Contact, 1 Reel Contains 750 pieces PE45262TR750
PE45262TR750 REV 1.0 2
