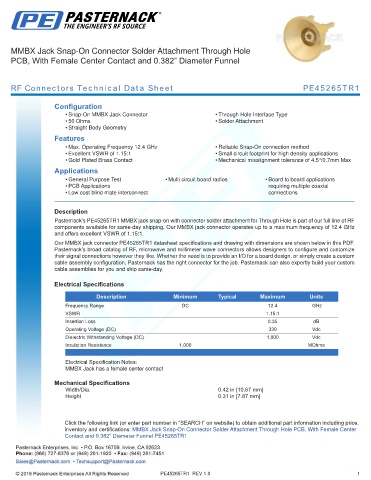

MMBX Jack Snap-On Connector Solder Attachment Through Hole
PCB, With Female Center Contact and 0.382” Diameter Funnel

RF Connectors Technical Data Sheet PE45265TR1

Configuration
• Snap-On MMBX Jack Connector • Through Hole Interface Type
• 50 Ohms • Solder Attachment
• Straight Body Geometry
Features
• Max. Operating Frequency 12.4 GHz • Reliable Snap-On connection method
• Excellent VSWR of 1.15:1 • Small circuit footprint for high density applications
• Gold Plated Brass Contact • Mechanical misalignment tolerance of 4.5°/0.7mm Max
Applications
• General Purpose Test • Multi circuit board radios • Board to board applications
• PCB Applications requiring multiple coaxial
• Low cost blind mate interconnect connections
.
Description
Pasternack’s PE45265TR1 MMBX jack snap-on with connector solder attachment for Through Hole is part of our full line of RF
components available for same-day shipping. Our MMBX jack connector operates up to a maximum frequency of 12.4 GHz
and offers excellent VSWR of 1.15:1.
Our MMBX jack connector PE45265TR1 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 12.4 GHz
VSWR 1.15:1
Insertion Loss 0.35 dB
Operating Voltage (DC) 330 Vdc
Dielectric Withstanding Voltage (DC) 1,000 Vdc
Insulation Resistance 1,000 MOhms
.
Electrical Specification Notes:
MMBX Jack has a female center contact

Mechanical Specifications
Width/Dia. 0.42 in [10.67 mm]
Height 0.31 in [7.87 mm]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MMBX Jack Snap-On Connector Solder Attachment Through Hole PCB, With Female Center
Contact and 0.382” Diameter Funnel PE45265TR1
