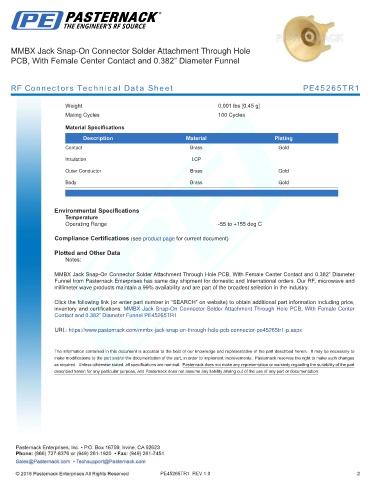

MMBX Jack Snap-On Connector Solder Attachment Through Hole
PCB, With Female Center Contact and 0.382” Diameter Funnel

RF Connectors Technical Data Sheet PE45265TR1

Weight 0.001 lbs [0.45 g]
.
Mating Cycles 100 Cycles

Material Specifications
Description Material Plating
Contact Brass Gold
Insulation LCP

Outer Conductor Brass Gold
Body Brass Gold
.

Environmental Specifications
Temperature
Operating Range -55 to +155 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

MMBX Jack Snap-On Connector Solder Attachment Through Hole PCB, With Female Center Contact and 0.382” Diameter
Funnel from Pasternack Enterprises has same day shipment for domestic and International orders. Our RF, microwave and
millimeter wave products maintain a 99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MMBX Jack Snap-On Connector Solder Attachment Through Hole PCB, With Female Center
Contact and 0.382” Diameter Funnel PE45265TR1

URL: https://www.pasternack.com/mmbx-jack-snap-on-through-hole-pcb-connector-pe45265tr1-p.aspx

PE45265TR1 REV 1.0 2
