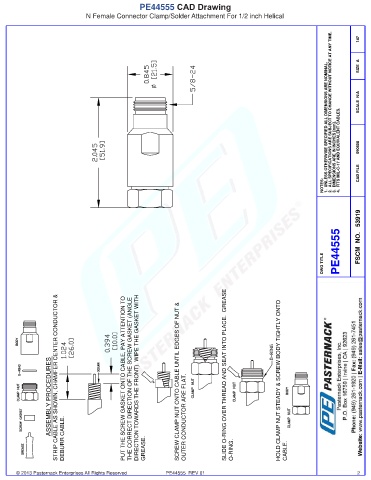

PE44555 CAD Drawing
N Female Connector Clamp/Solder Attachment For 1/2 inch Helical
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
147
SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SCALE N/A
3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 090808
NOTES: CAD FILE
PE44555 FSCM NO. 53919
DWG TITLE
ASSEMBLY PROCEDURES STRIP CABLE AS SHOWN, CHAMFER CENTER CONDUCTOR & PUT THE SCREW GASKET ONTO CABLE, PAY ATTENTION TO THE CORRECT DIRECTION OF THE SCREW GASKET (ANGLE DIRECTION TOWARDS THE FRONT). WIPE THE GASKET WITH SCREW CLAMP NUT ONTO CABLE UNTIL EDGES OF NUT & OUTER CONDUCTOR ARE FLAT. SLIDE O-RING OVER THREAD AND SEAT INTO PLACE. GREASE HOLD CLAMP NUT STEADY & SCREW BODY TIGHTLY ONTO
DEBURR CABLE. GREASE. O-RING. CABLE.
