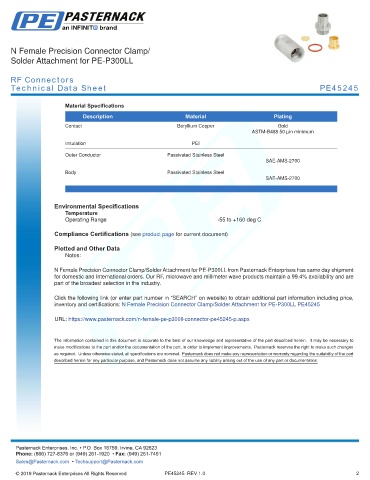

N Female Precision Connector Clamp/
Solder Attachment for PE-P300LL

RF Connectors
Technical Data Sheet PE45245

Material Specifications
Description Material Plating
Contact Beryllium Copper Gold
ASTM-B488 50 µin minimum

Insulation PEI
Outer Conductor Passivated Stainless Steel
SAE-AMS-2700

Body Passivated Stainless Steel
SAE-AMS-2700
.

Environmental Specifications
Temperature
Operating Range -55 to +160 deg C

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

N Female Precision Connector Clamp/Solder Attachment for PE-P300LL from Pasternack Enterprises has same day shipment
for domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99.4% availability and are
part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Precision Connector Clamp/Solder Attachment for PE-P300LL PE45245

URL: https://www.pasternack.com/n-female-pe-p300ll-connector-pe45245-p.aspx

-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE45245 REV 1.0 2
