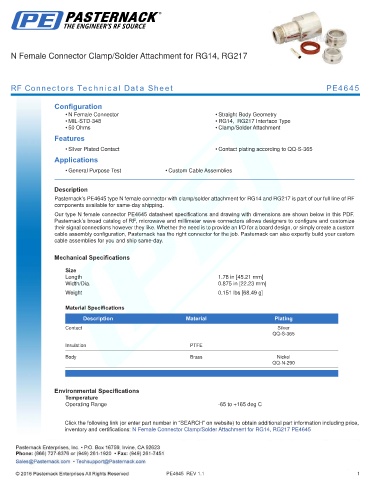

N Female Connector Clamp/Solder Attachment for RG14, RG217

RF Connectors Technical Data Sheet PE4645

Configuration
• N Female Connector • Straight Body Geometry
• MIL-STD-348 • RG14, RG217 Interface Type
• 50 Ohms • Clamp/Solder Attachment
Features
• Silver Plated Contact • Contact plating according to QQ-S-365
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4645 type N female connector with clamp/solder attachment for RG14 and RG217 is part of our full line of RF
components available for same-day shipping.
Our type N female connector PE4645 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.78 in [45.21 mm]
Width/Dia. 0.875 in [22.23 mm]
.
Weight 0.151 lbs [68.49 g]
.
Material Specifications
Description Material Plating
Contact Silver
QQ-S-365
Insulation PTFE

Body Brass Nickel
QQ-N-290
.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Connector Clamp/Solder Attachment for RG14, RG217 PE4645

PE4645 REV 1.1 1
