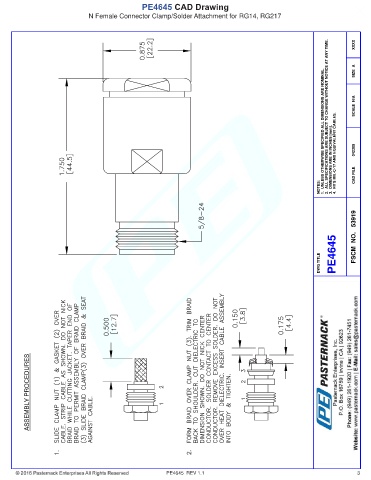

PE4645 CAD Drawing
N Female Connector Clamp/Solder Attachment for RG14, RG217
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
XXXX
SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SCALE N/A
3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 042309
NOTES: CAD FILE
DWG TITLE PE4645 FSCM NO. 53919
ASSEMBLY PROCEDURES
PE4645 REV 1.1 3
