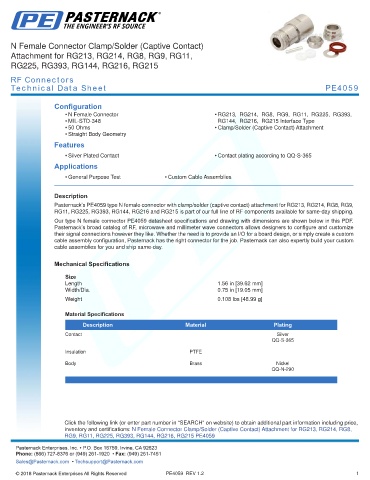

N Female Connector Clamp/Solder (Captive Contact)
Attachment for RG213, RG214, RG8, RG9, RG11,
RG225, RG393, RG144, RG216, RG215

RF Connectors
Technical Data Sheet PE4059

Configuration
• N Female Connector • RG213, RG214, RG8, RG9, RG11, RG225, RG393,
• MIL-STD-348 RG144, RG216, RG215 Interface Type
• 50 Ohms • Clamp/Solder (Captive Contact) Attachment
• Straight Body Geometry
Features
• Silver Plated Contact • Contact plating according to QQ-S-365
Applications

• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4059 type N female connector with clamp/solder (captive contact) attachment for RG213, RG214, RG8, RG9,
RG11, RG225, RG393, RG144, RG216 and RG215 is part of our full line of RF components available for same-day shipping.
Our type N female connector PE4059 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Mechanical Specifications
Size
Length 1.56 in [39.62 mm]
Width/Dia. 0.75 in [19.05 mm]
.
Weight 0.108 lbs [48.99 g]
.
Material Specifications
Description Material Plating
Contact Silver
QQ-S-365
Insulation PTFE
Body Brass Nickel
QQ-N-290
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Connector Clamp/Solder (Captive Contact) Attachment for RG213, RG214, RG8, -
RG9, RG11, RG225, RG393, RG144, RG216, RG215 PE4059 Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE4059 REV 1.2 1
