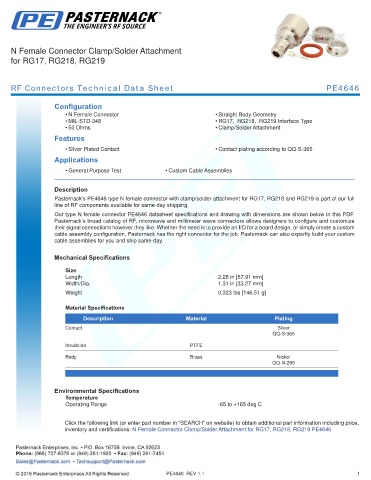

N Female Connector Clamp/Solder Attachment
for RG17, RG218, RG219

RF Connectors Technical Data Sheet PE4646

Configuration
• N Female Connector • Straight Body Geometry
• MIL-STD-348 • RG17, RG218, RG219 Interface Type
• 50 Ohms • Clamp/Solder Attachment
Features
• Silver Plated Contact • Contact plating according to QQ-S-365
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4646 type N female connector with clamp/solder attachment for RG17, RG218 and RG219 is part of our full
line of RF components available for same-day shipping.
Our type N female connector PE4646 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 2.28 in [57.91 mm]
Width/Dia. 1.31 in [33.27 mm]
.
Weight 0.323 lbs [146.51 g]
.
Material Specifications
Description Material Plating
Contact Silver
QQ-S-365
Insulation PTFE

Body Brass Nickel
QQ-N-290
.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Connector Clamp/Solder Attachment for RG17, RG218, RG219 PE4646

PE4646 REV 1.1 1
