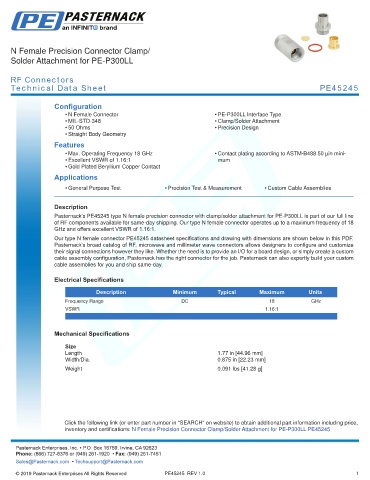

N Female Precision Connector Clamp/
Solder Attachment for PE-P300LL

RF Connectors
Technical Data Sheet PE45245

Configuration
• N Female Connector • PE-P300LL Interface Type
• MIL-STD-348 • Clamp/Solder Attachment
• 50 Ohms • Precision Design
• Straight Body Geometry
Features
• Max. Operating Frequency 18 GHz • Contact plating according to ASTM-B488 50 µin mini-
• Excellent VSWR of 1.16:1 mum
• Gold Plated Beryllium Copper Contact
Applications
• General Purpose Test • Precision Test & Measurement • Custom Cable Assemblies
.
Description
Pasternack’s PE45245 type N female precision connector with clamp/solder attachment for PE-P300LL is part of our full line
of RF components available for same-day shipping. Our type N female connector operates up to a maximum frequency of 18
GHz and offers excellent VSWR of 1.16:1.
Our type N female connector PE45245 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
VSWR 1.16:1
.

Mechanical Specifications

Size
Length 1.77 in [44.96 mm]
Width/Dia. 0.875 in [22.23 mm]
.
Weight 0.091 lbs [41.28 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Precision Connector Clamp/Solder Attachment for PE-P300LL PE45245 -
