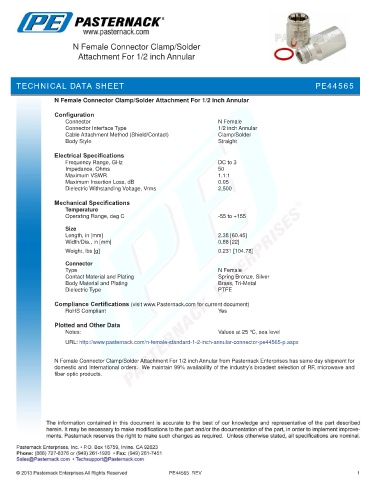

TECHNICAL DATA SHEET PE44565

N Female Connector Clamp/Solder Attachment For 1/2 inch Annular

Configuration
Connector N Female
Connector Interface Type 1/2 inch Annular
Cable Attachment Method (Shield/Contact) Clamp/Solder
Body Style Straight

Electrical Specifications
Frequency Range, GHz DC to 3
Impedance, Ohms 50
Maximum VSWR 1.1:1
Maximum Insertion Loss, dB 0.05
Dielectric Withstanding Voltage, Vrms 2,500

Mechanical Specifications
Temperature
Operating Range, deg C -55 to +155
Size
Length, in [mm] 2.38 [60.45]
Width/Dia., in [mm] 0.88 [22]
.
Weight, lbs [g] 0.231 [104.78]

Connector
Type N Female
Contact Material and Plating Spring Bronze, Silver
Body Material and Plating Brass, Tri-Metal
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level
URL: http://www.pasternack.com/n-female-standard-1-2-inch-annular-connector-pe44565-p.aspx

N Female Connector Clamp/Solder Attachment For 1/2 inch Annular from Pasternack Enterprises has same day shipment for
domestic and International orders. We maintain 99% availability of the industry’s broadest selection of RF, microwave and
fiber optic products.

PE44565 REV 1
