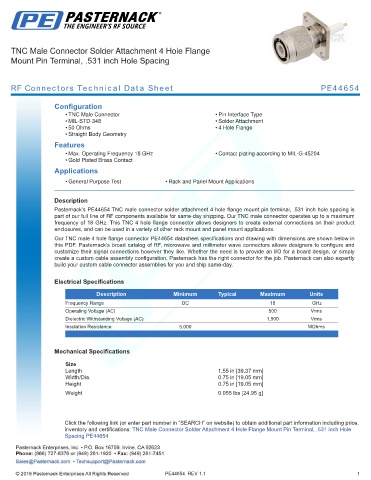

TNC Male Connector Solder Attachment 4 Hole Flange
Mount Pin Terminal, .531 inch Hole Spacing

RF Connectors Technical Data Sheet PE44654

Configuration
• TNC Male Connector • Pin Interface Type
• MIL-STD-348 • Solder Attachment
• 50 Ohms • 4 Hole Flange
• Straight Body Geometry
Features
• Max. Operating Frequency 18 GHz • Contact plating according to MIL-G-45204
• Gold Plated Brass Contact
Applications

• General Purpose Test • Rack and Panel Mount Applications
.
Description
Pasternack’s PE44654 TNC male connector solder attachment 4 hole flange mount pin terminal, .531 inch hole spacing is
part of our full line of RF components available for same-day shipping. Our TNC male connector operates up to a maximum
frequency of 18 GHz. This TNC 4 hole flange connector allows designers to create external connections on their product
enclosures, and can be used in a variety of other rack mount and panel mount applications.
Our TNC male 4 hole flange connector PE44654 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable connector assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
Operating Voltage (AC) 500 Vrms
Dielectric Withstanding Voltage (AC) 1,500 Vrms
Insulation Resistance 5,000 MOhms
.

Mechanical Specifications
Size
Length 1.55 in [39.37 mm]
Width/Dia. 0.75 in [19.05 mm]
Height 0.75 in [19.05 mm]
.
Weight 0.055 lbs [24.95 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Male Connector Solder Attachment 4 Hole Flange Mount Pin Terminal, .531 inch Hole
Spacing PE44654

PE44654 REV 1.1 1
